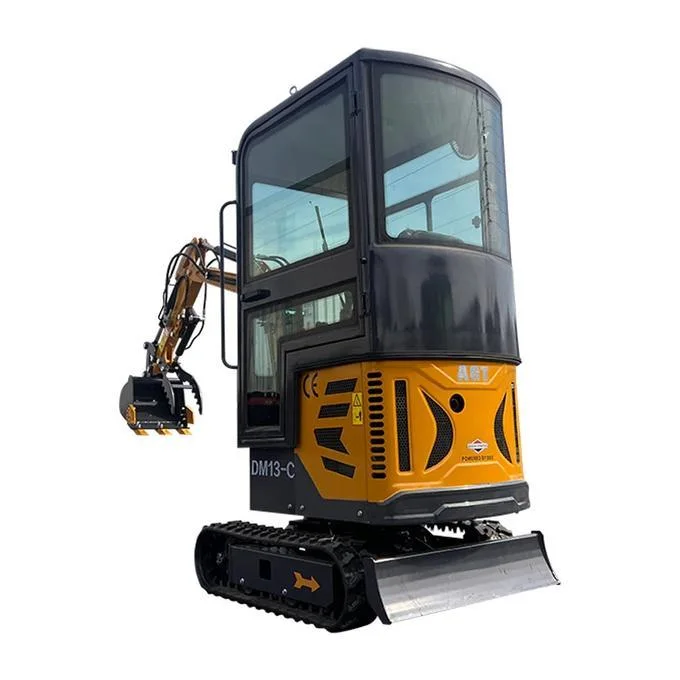

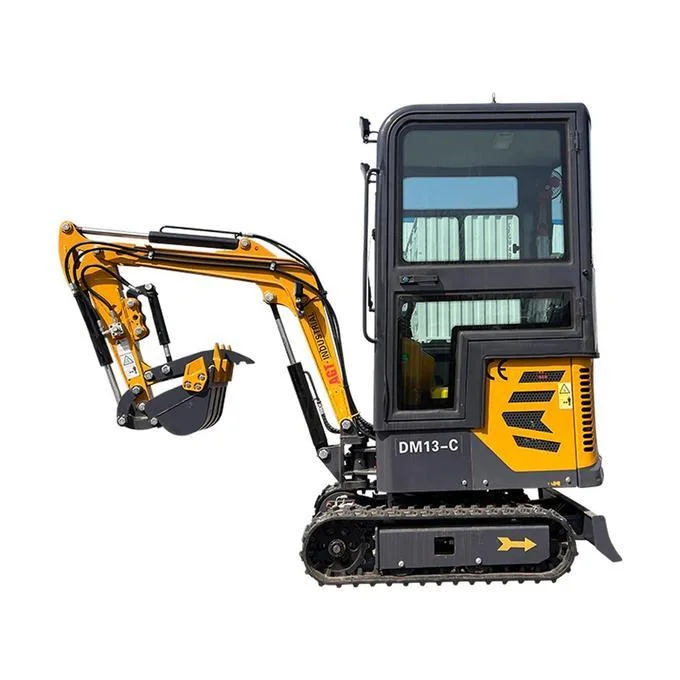

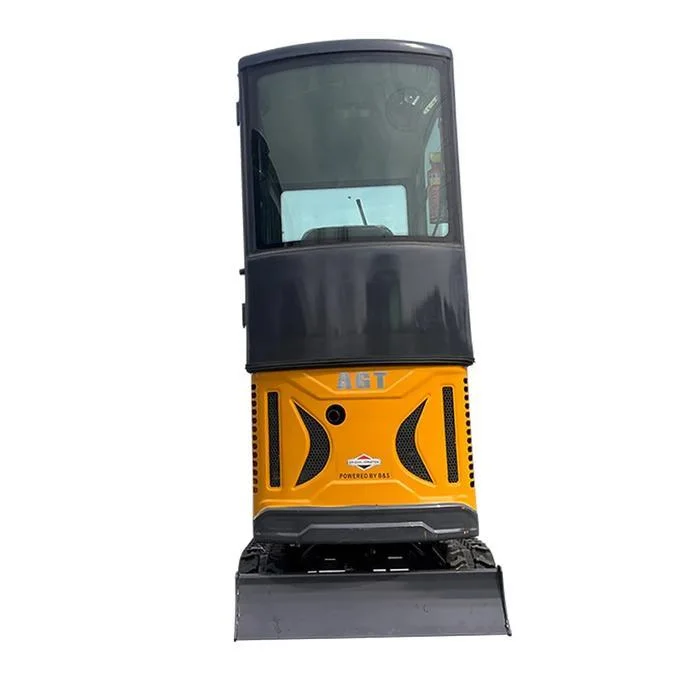

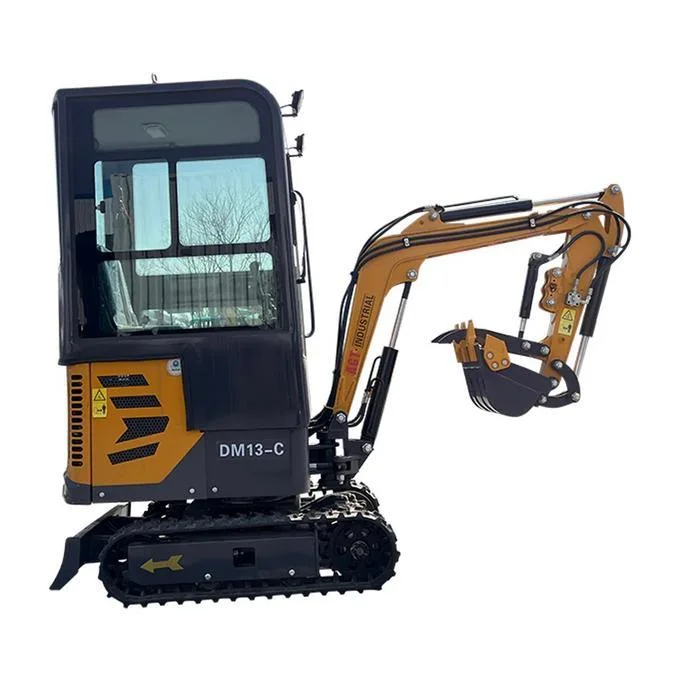

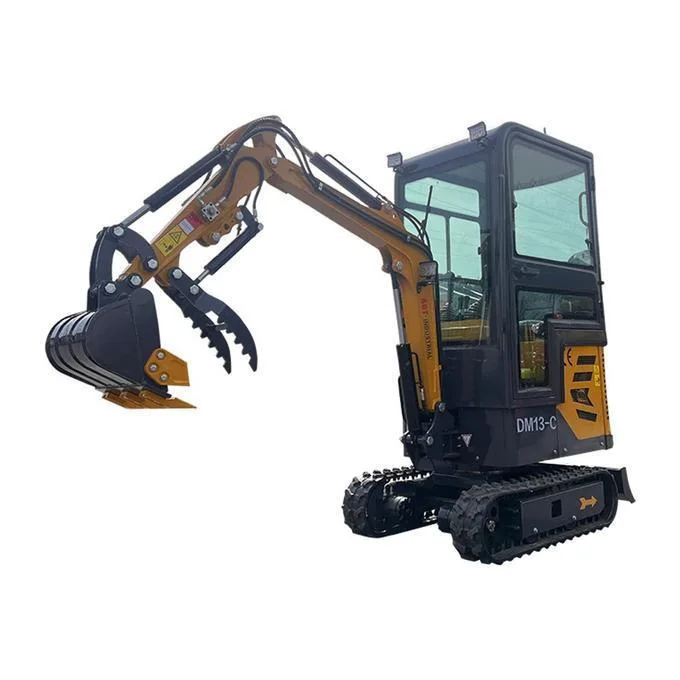

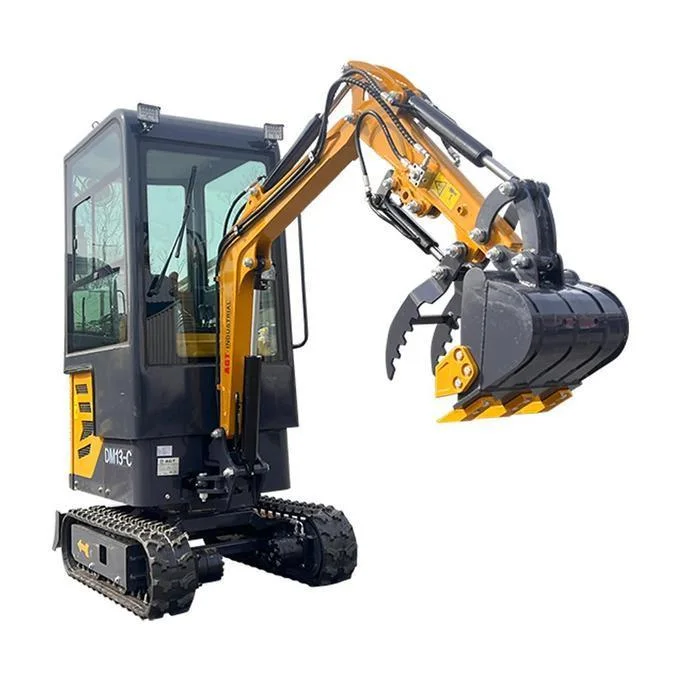

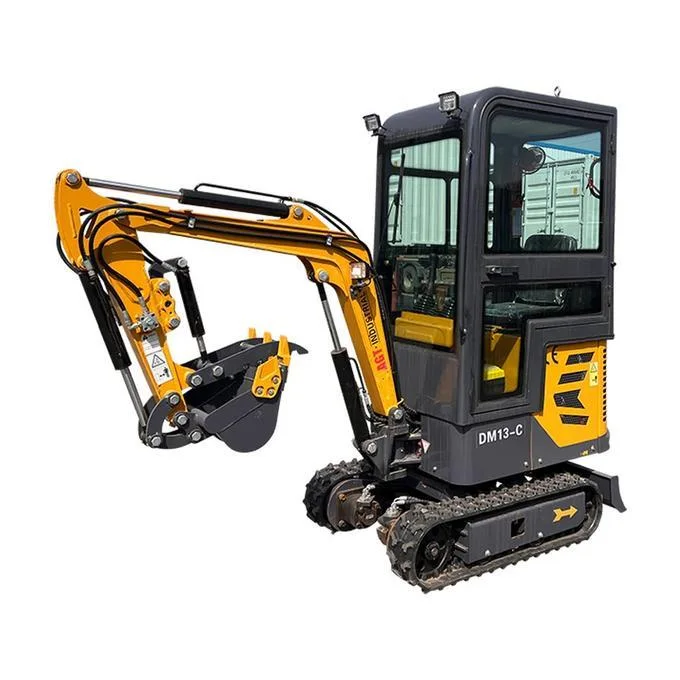

AGT 13.5 HP B&S 1 Ton Mini Small Cab Excavator, With Hydraulic Thumb and Swing Boom ,Gasoline For Sale | AGT-DM13-C
Original price was: $8,029.$3,211Current price is: $3,211.
Descriptions:
- 1-Ton Mini Excavator: With a compact design, 1-ton operating weight, and a maximum digging depth of 5.52 feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces.
- Simplified Safety and Maintenance: Our mini excavators increase safety with internal hydraulic hoses to ensure a lower risk of damage. Rear-opening compartments provide easy access to critical components, minimizing downtime and maximizing optimal operational performance.
Technical Data:
|
Basic
Performance
Parameters
|
Working Weight(kg)
|
940
|
|
Bucket capacity(m³)
|
0.03
|
|
|
Travel speed low/high speed(Km/h)
|
0-0.2
|
|
|
Climbing ability(%)
|
30
|
|
|
A Maximum Digging Height(mm)
|
2795
|
|
|
B Maximum Unloading Height(mm)
|
1863
|
|
|
C Maximum Digging Depth(mm)
|
1684
|
|
|
E Max. digging radius(mm)
|
3112
|
|
|
Side Swing
|
√
|
|
|
Side Swing Angle (L/R)
|
30°
|
|
|
undercarriage expansion
|
×
|
|
|
Body
|
J Overall Length(mm)
|
2738
|
|
K Overall Width(mm)
|
935
|
|
|
L Overall Height(mm)
|
2209
|
|
|
Bulldozer Width/Height
|
907/210
|
|
|
Engine
|
Engine Brand
|
B&S
|
|
Engine Model
|
13.5HP
|
|
|
Max. power(Kw)
|
9.8
|
|
|
Max. speed(rpm)
|
3600
|
|
|
Cylinders
|
1
|
|
|
Cooling method
|
fan cooling
|
|
|
Engine oil change quantity(L)
|
1.1
|
|
|
Fuel Type
|
Gasoline
|
|
|
Fuel Grade
|
92#
|
|
|
Theoretical fuel consumption(L/h)
|
0.5-1.2
|
|
|
Hydraulic
system
|
Main pump type/model
|
gear pumps/06
|
|
Main pump brand
|
(Tianjin Xingzou)
|
|
|
Rated set pressure(Mpa)
|
16
|
|
|
Maximum flow rate of main pump(L/min)
|
21.6
|
|
|
Multi-way valve
|
8 multi-way valves
|
|
|
Brand of Multi-way valve
|
(Bei Fang)
|
|
|
Rated Set Pressure(Mpa)
|
16
|
|
|
Hydraulic Linear Motor type
|
BM6-310
|
|
|
Linear Motor Brand
|
(Li Yuan)
|
|
|
Hydraulic Servo Motor type
|
BM2-250
|
|
|
Excavator tracks
|
â–³-Rubber (bandwidth*pitch*number of sections)
|
180*72*37
|
|
Configuration
|
Cab
|
√
|
|
Roof
|
×
|
|
|
Handrail
|
×
|
|
|
Thumb Clip
|
√
|
|
|
Counterweight
|
×
|
|
|
Tensioning Forms
|
Mechanical tensioning
|
|
|
Air Conditioning
|
×
|
|
|
Fuel tank
|
Fuel tank(L)
|
6.6
|
|
Hydraulic oil tan（L）
|
18
|
| Brand | AGT |
|---|---|
| Engine | Briggs & Stratton |
| Operating Weight | 1 Ton |
